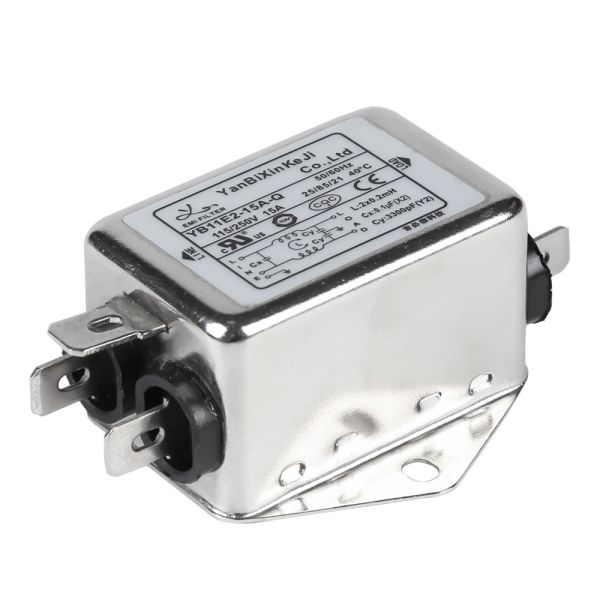

220V 15amps YB-E Passive Single Phase Filter Power Line Filter For
Electrical Equipment
Power Line Filter, Noise Filter, Line Filter, EMI filter, EMC
filter
Passive EMI EMC Filter:
Passive EMI EMC filter is a type of filter used to reduce
electromagnetic interference (EMI) and improve electromagnetic compatibility (EMC) in electronic devices and systems. It is a passive
component, which means that it does not require an external power
source to operate.
Feature Of YB11E2 EMI Filter:
1. Various terminal options allow you to select
2. YB11 filters are also available as two-stage filters(YB35)
in noisy environmment.
3. The compact size can be applied to various situations.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Datacom equipment
-- Office automation and datacom equipment
YB11E2 EMI Filter Specification:
| Item | YB-E Power Line Filter |
| Model | YB11E2-15A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC/250VAC |
| Rated Current | 1A 3A 6A 8A 10A 15A |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 100pcs |
Rule of Nomination:
| YB | 11 | E2 | - | 15A | - | Q |
| ∣ | ∣ | ∣ | | ∣ | | ∣ |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | E2 | | 6A :6 amp | | Q:fast-on tab 250 |
| | | | | 10A :10 amp | | W:wire |
| | | | | 15A :15 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11E2-3A | E2 | 3 | Fast-on terminal |
| YB11E2-6A | E2 | 6 |
| YB11E2-8A | E2 | 8 | Solder Lug Terminals |
| YB11E2--10A | E2 | 10 |
| YB11E2-15A | E2 | 15 | Wire |
Product Picture:
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Bleeder resistor(optional) | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
|
| | | |
| YB11E1-1A | 1A | Q | - | W | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11E1-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E1-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E1-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E1-10A | 10A | Q | - | W | - | Fig.1 |
| YB11E2-1A | 1A | - | - | W | - | Fig.1 |
| YB11E2-3A | 3A | - | - | W | - | Fig.1 |
| YB11E2-6A | 6A | - | - | W | - | Fig.1 |
| YB11E2-8A | 8A | - | - | W | - | Fig.1 |
| YB11E2-10A | 10A | - | - | W | - | Fig.1 |
| YB11E3-1A | 1A | Q | - | W | - | Fig.1 |
| YB11E3-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E3-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E3-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E3-10A | 10A | Q | - | W | - | Fig.1 |
Electrical Schematic:
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
|
| E1 | 24 | 45 | 19 | 54.5 | 64.5 | 23 | 9.5 | 4.5 | | | 6.3*0.8 |
|
| E2 | 44 | 29 | 22 | 40 | 50 | 15 | 8 | 4.5 | 3.5 | | UL1015 |
|
| E3 | 32 | 46 | 22.5 | 54 | 62 | 24 | 12.5 | 4.5 | | | 6.3*0.8 |
|
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 |
|
